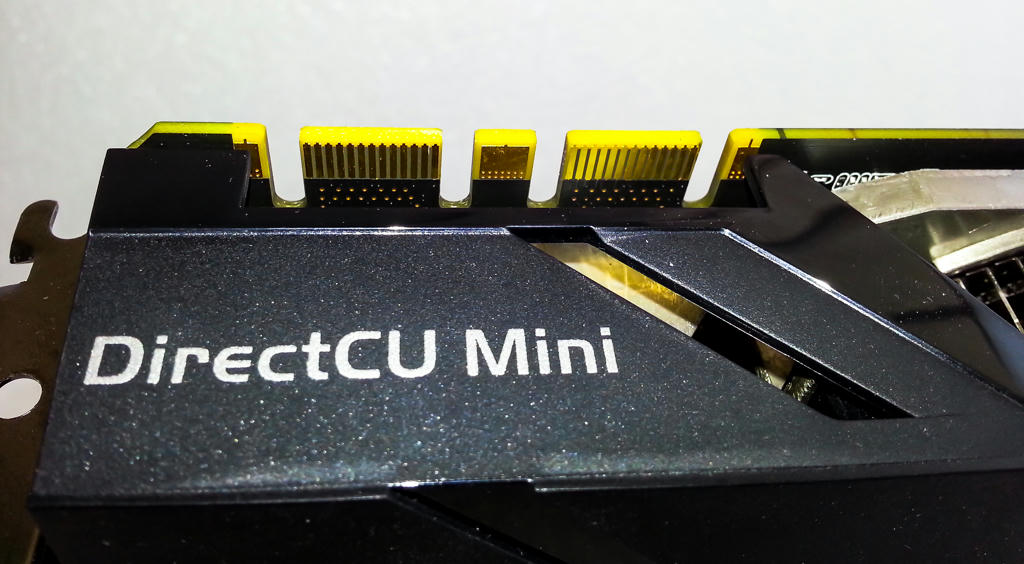

Asus just release their "Mini-Size GPU", a GTX 670 sized (17cm) PCB, featuring a new version of DirectCU with copper base vapor-chamber inside the in the main heatsink amd appears to be a combination of an aluminum base plate covering the memory chip and VRM. The Mini DirectCU used CoolTech fan blowing wider angle airflow in multi-direction also improving more airflow and cooler than traditional fan.
Specifications:
Model: Asus GTX670-DCMOC-2GD5
Graphics Engine: NVIDIA GeForce GTX670
Bus Standard: PCI-Express 3.0
Video Memory: 2GB GDDR5
GPU boost clock: 1006mhz
GPU base clock: 928mhz
CUDA cores: 1344
Memory clock: 6008mhz [1502 mhz GDDR5]
Memory interface: 256 bits
Dimension: 6.7" x 4.8" x 1.6"
System Test:
Intel core i5 3570K
Asus P8Z77-V
G.Skill 16Gb 1600mhz CL9
Asus GTX670 DC Mini
Plextor M5 Pro 128Gb
FSP 850w
----------------------------------------------------

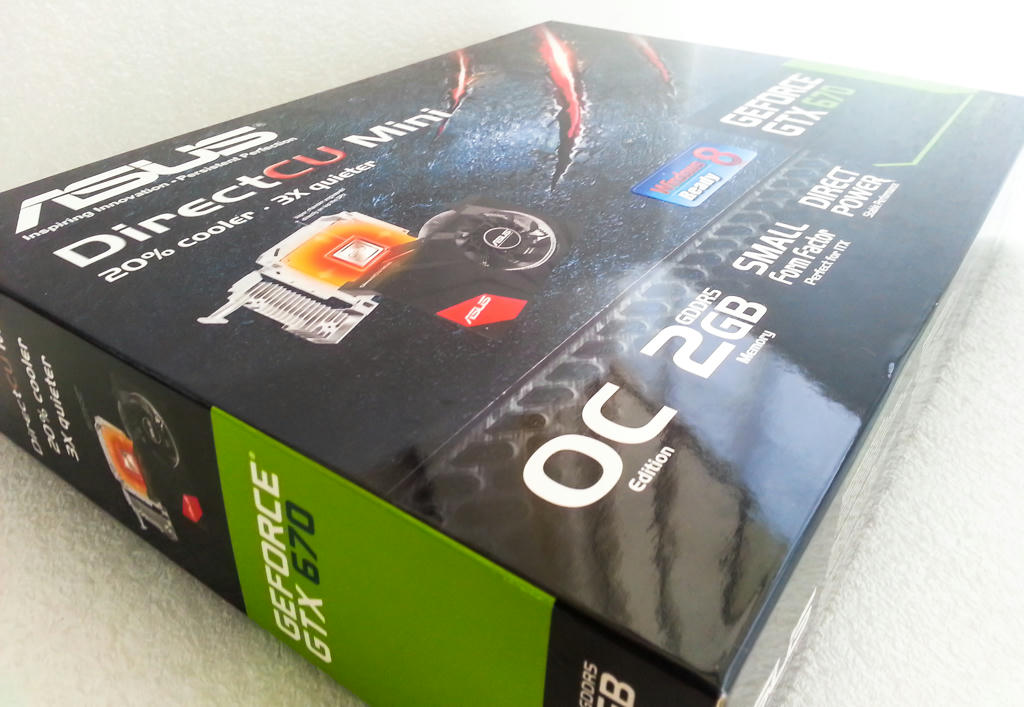

Asus GTX670 Mini packaging box
Top view of the box:
Back view of the box
Side view of the box

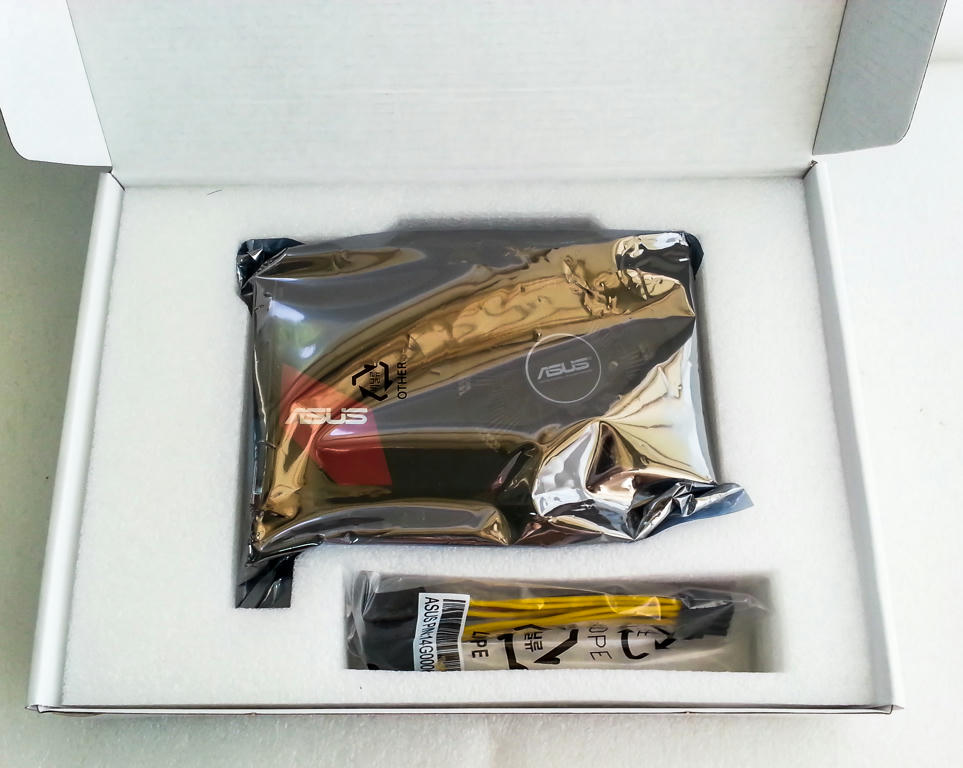

Unboxing

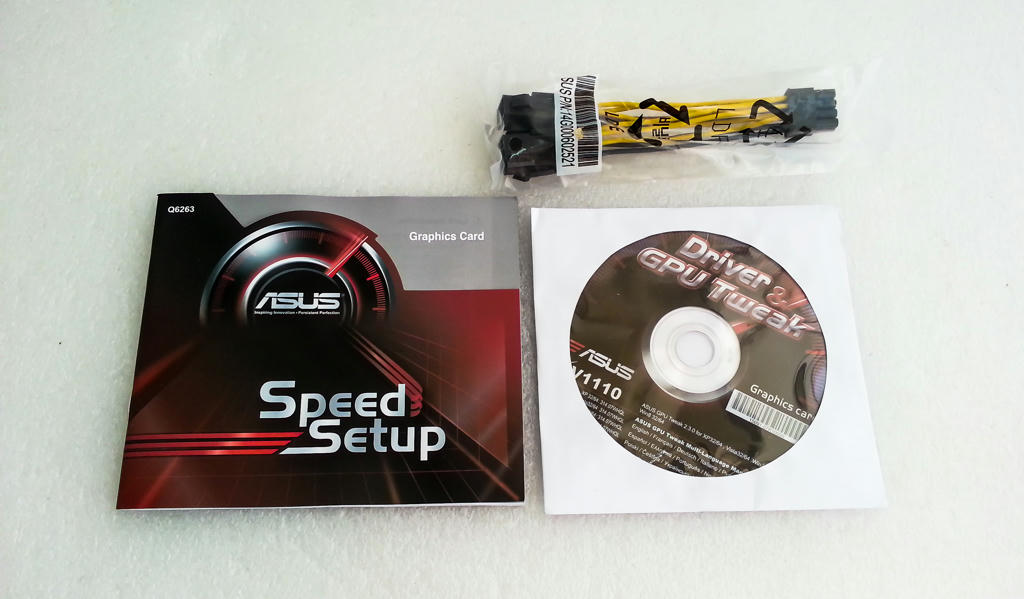

Accessory:
Users Manual
Driver/GPU Tweak utilities
1x Power cable converter

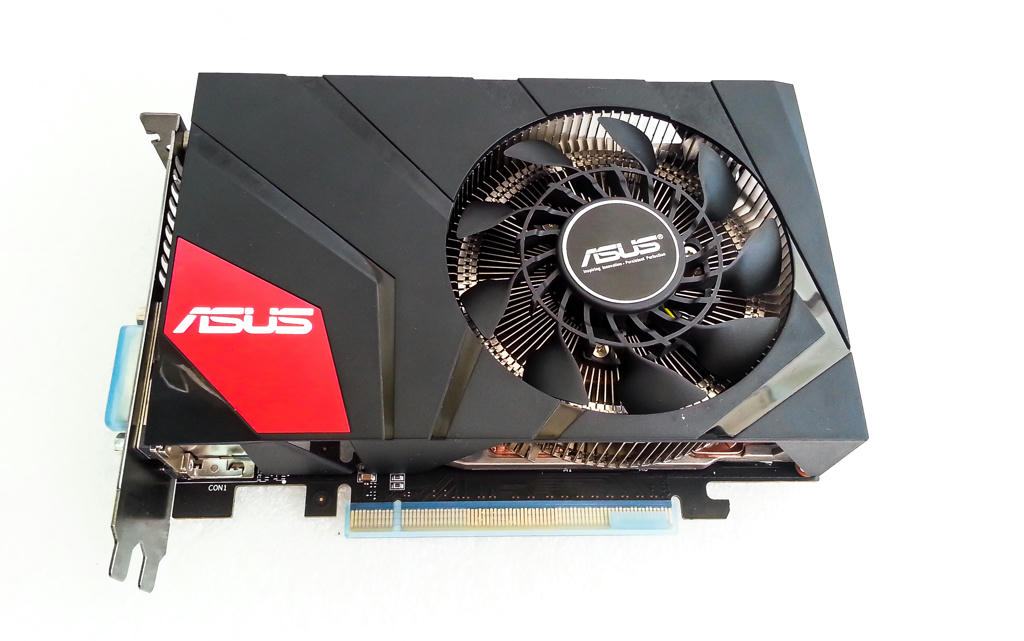

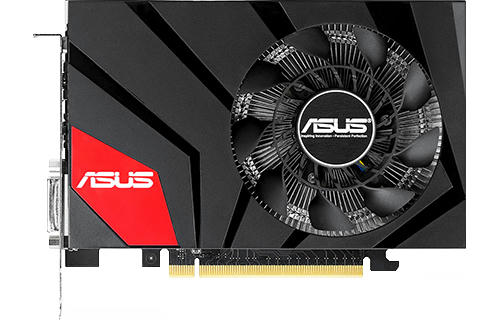

The Asus GTX670 DCU Mini card

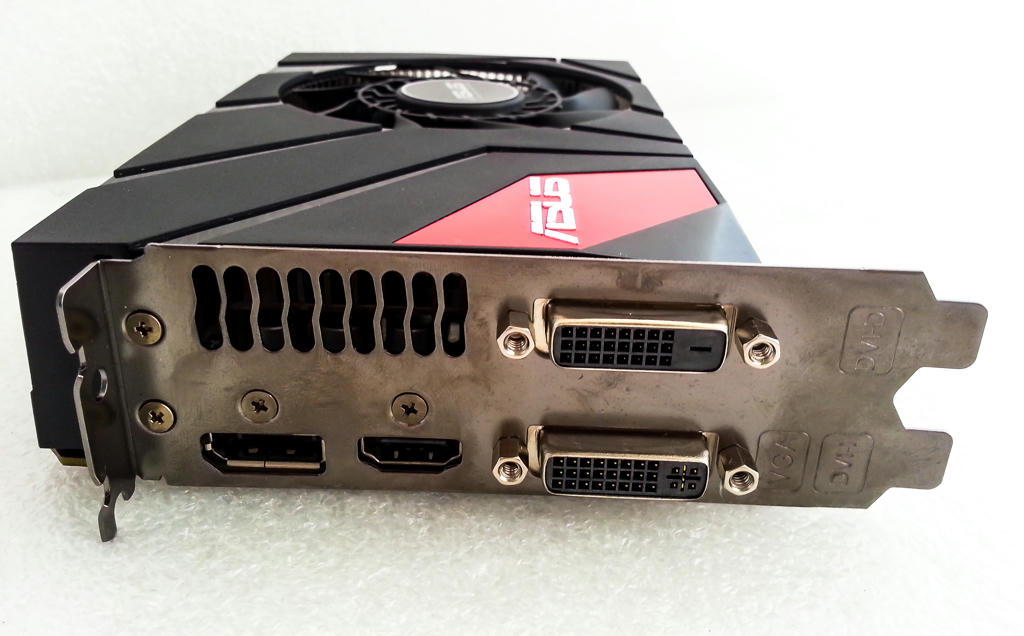

I/O port:
1x DVI-I
1x DVI-D
1x HDMI 1.4
1x Display Port

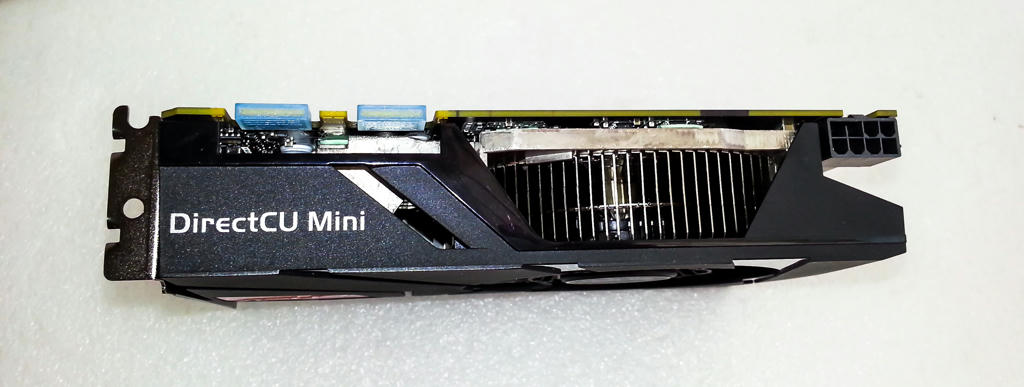

Side view of the card
Side view of the card

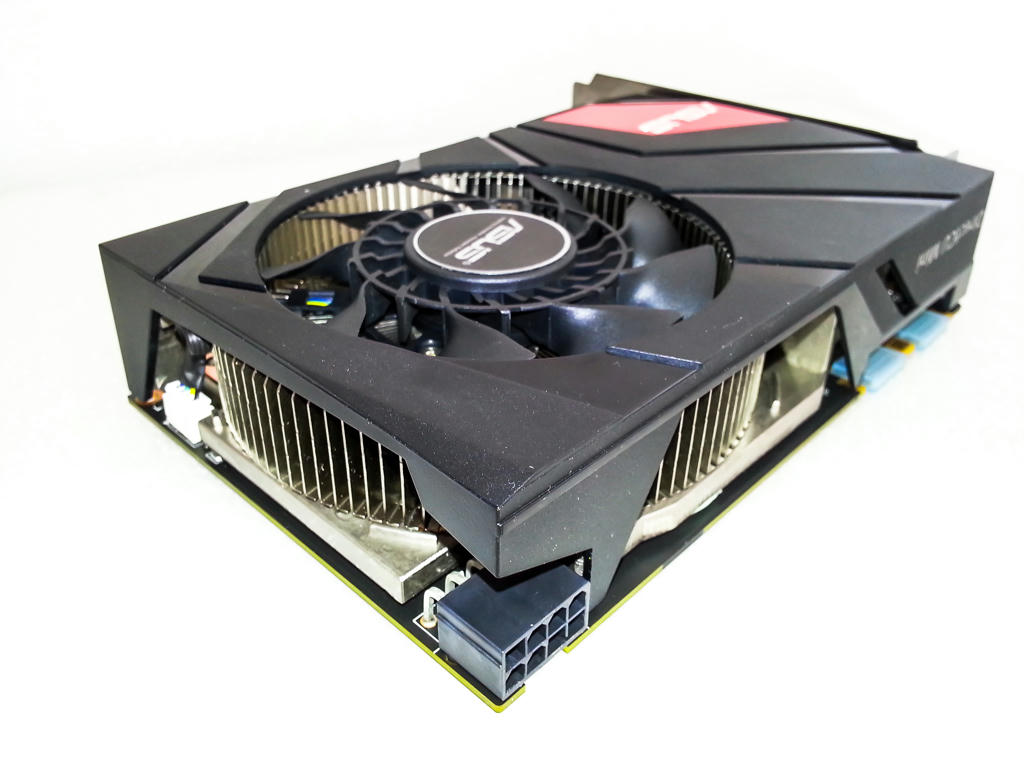

Top view of the card

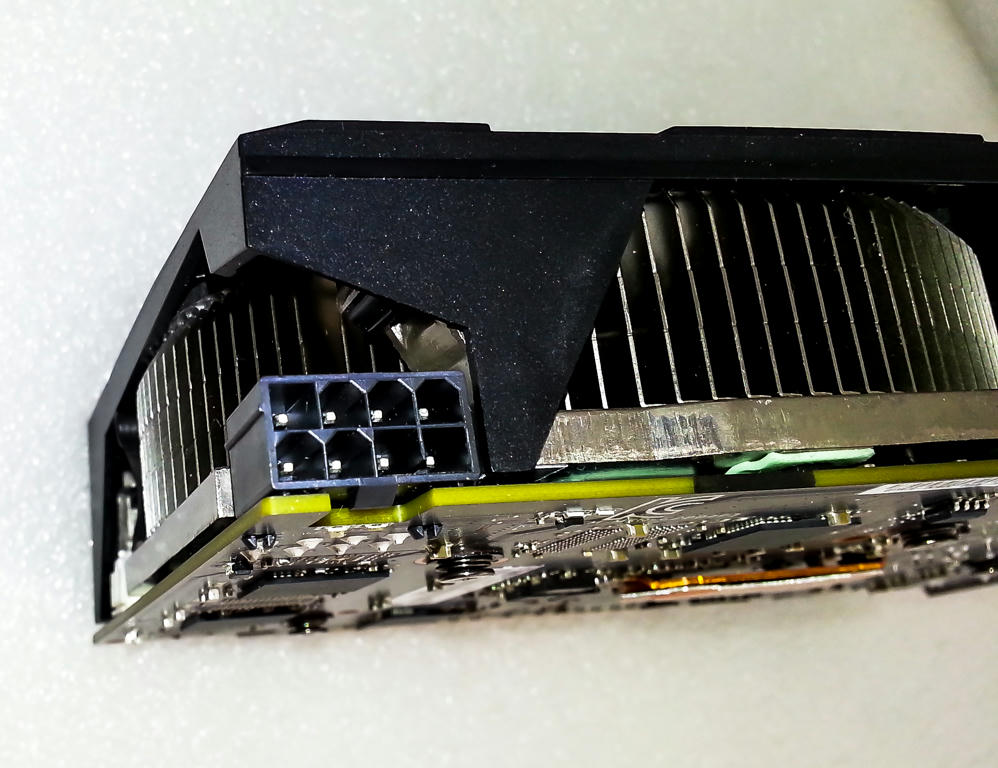

This card require 8-pins power

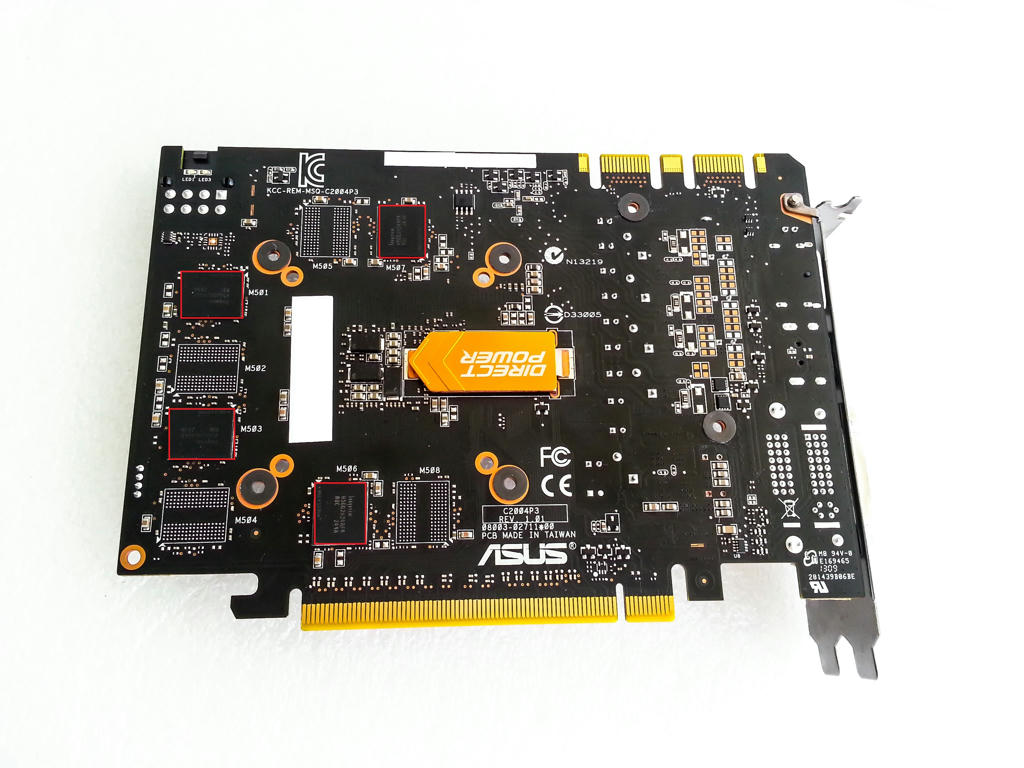

Back video of the card
"Direct Power>" This is just a copper heat sink, used to spread heat from inner PCB layer and lower down the temperature of the card.
Direct Power >> pointing at the SAP caps to maximize overclocking headroom
This card allow you to run 3-way SLI card, it mean you can link up with 3 cards

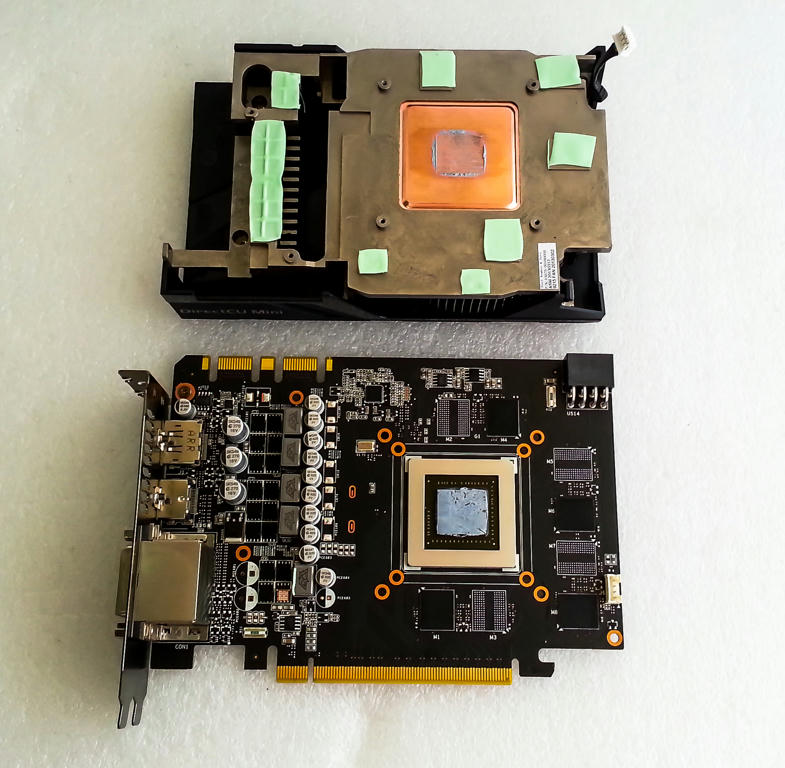

Dismantle: DirectCU cooler and PCB

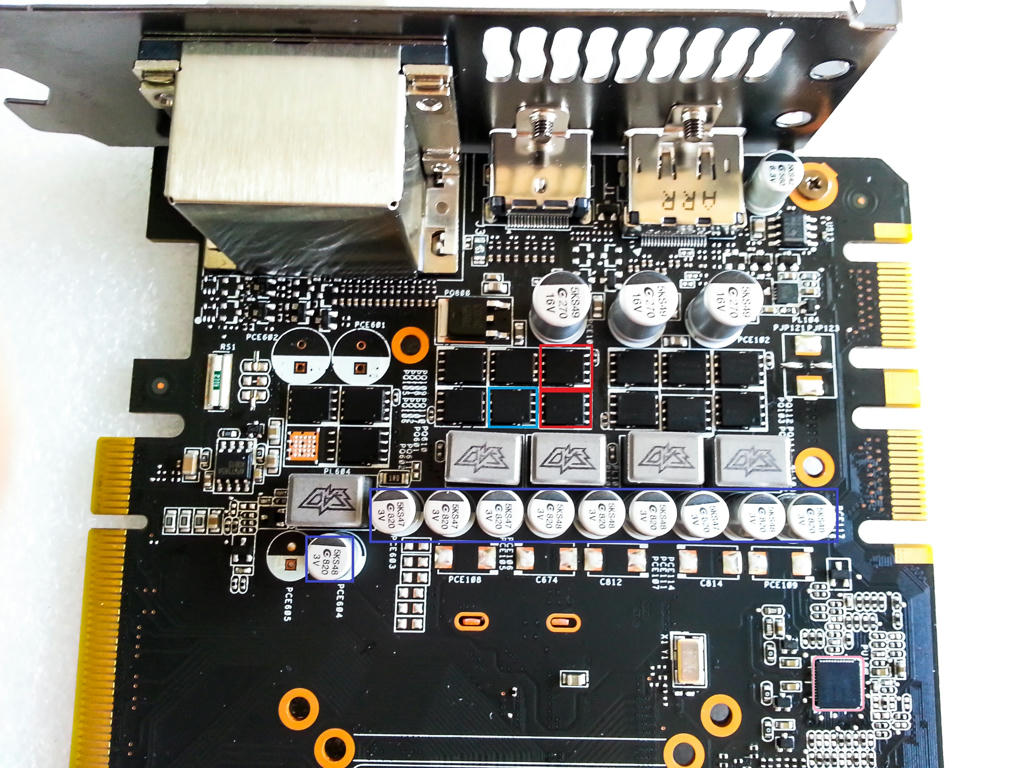

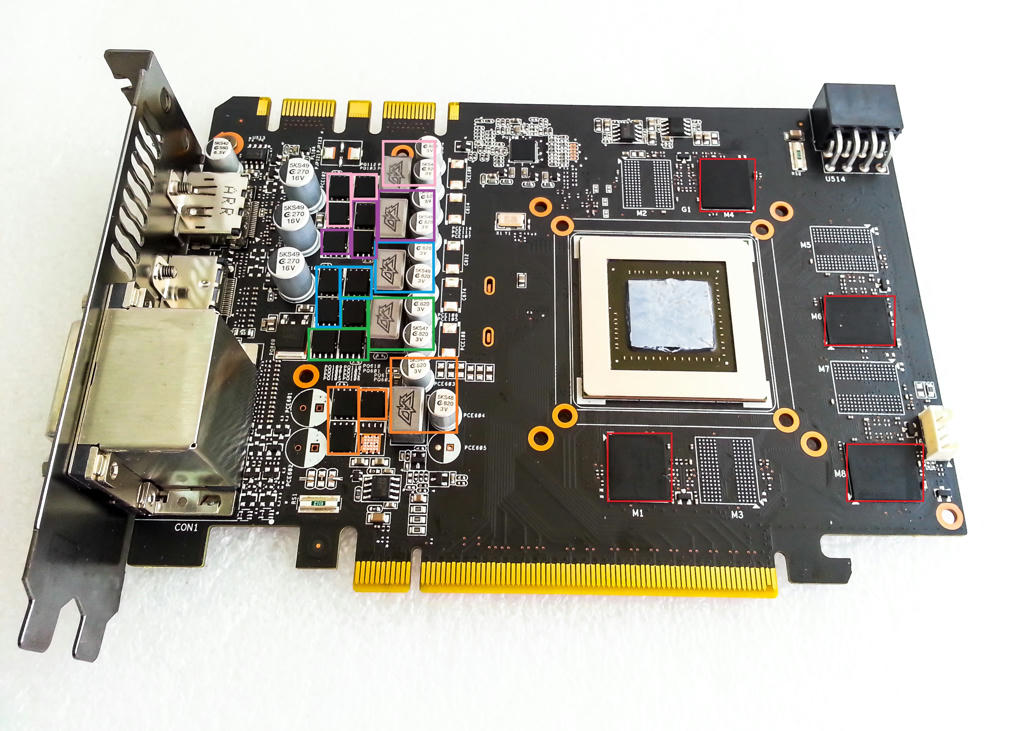

This card used 4+1 Power phase.
Red: 4x Hynix memory chip on the surface.
Orange: 1 phase for VRAM- video memory
Green/Blue/Purple/Pink Total 4 phase for GPU cores, 1 color is 1 phase.

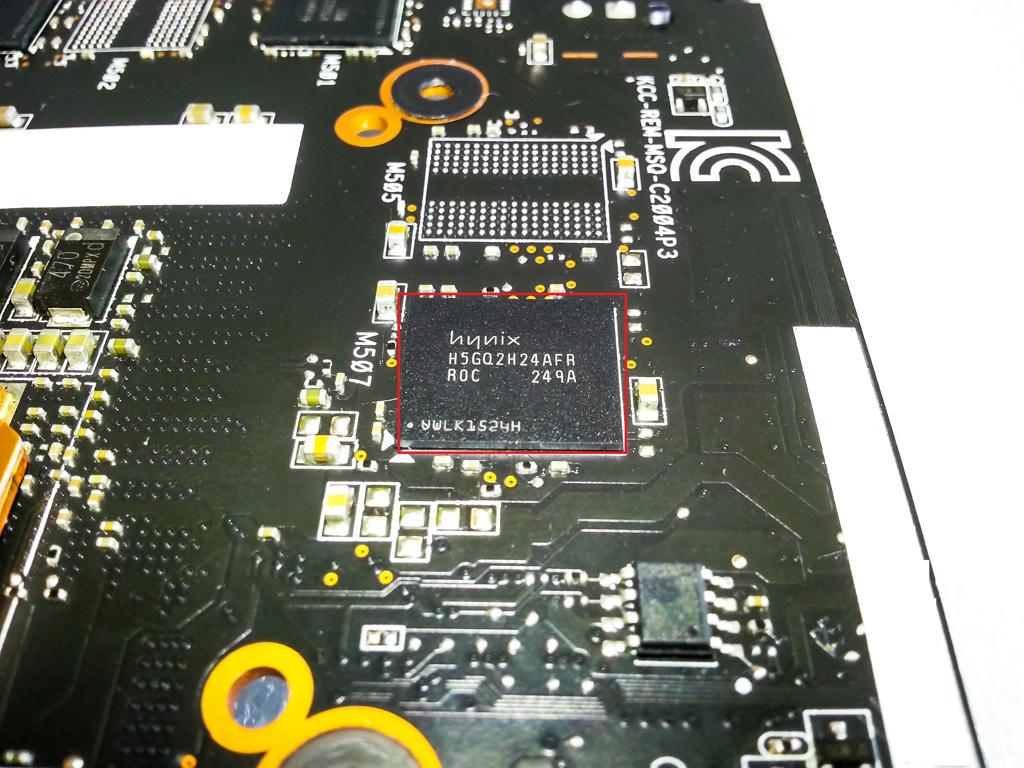

This video memory used: Hynix H5GQ2H24AFA chips, a total of 8 memory chips is clocked to 6Gbps and given 2GB GDDR5
And back of the PCB have 4x Hynix Memory chips

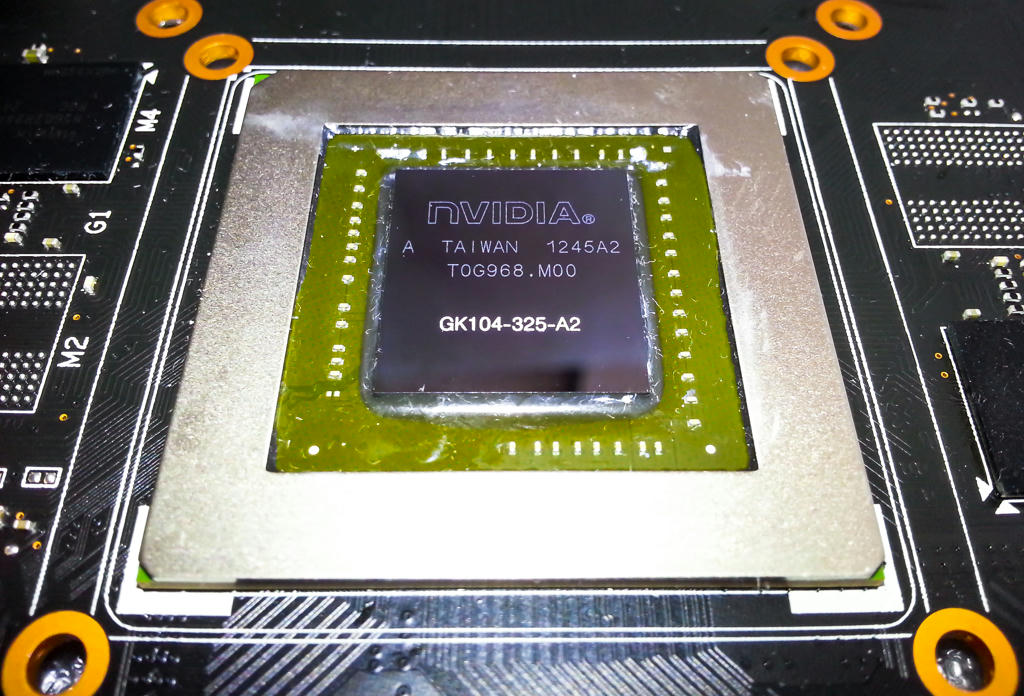

NVIDIA: GK104-325-A2 GPU
Asus used High Quality Mosfets, Two red 4937N MOSFETs act on the low-side and a single blue 4955N is used as the high-side. These MOSFETs have very low RDS(ON)
Purple: Asus used taiwan made soild caps
Pink Richtek RT8867A PWM 4-power phase controller
This is DirectCU Mini with Custom vapor chamber heat sink

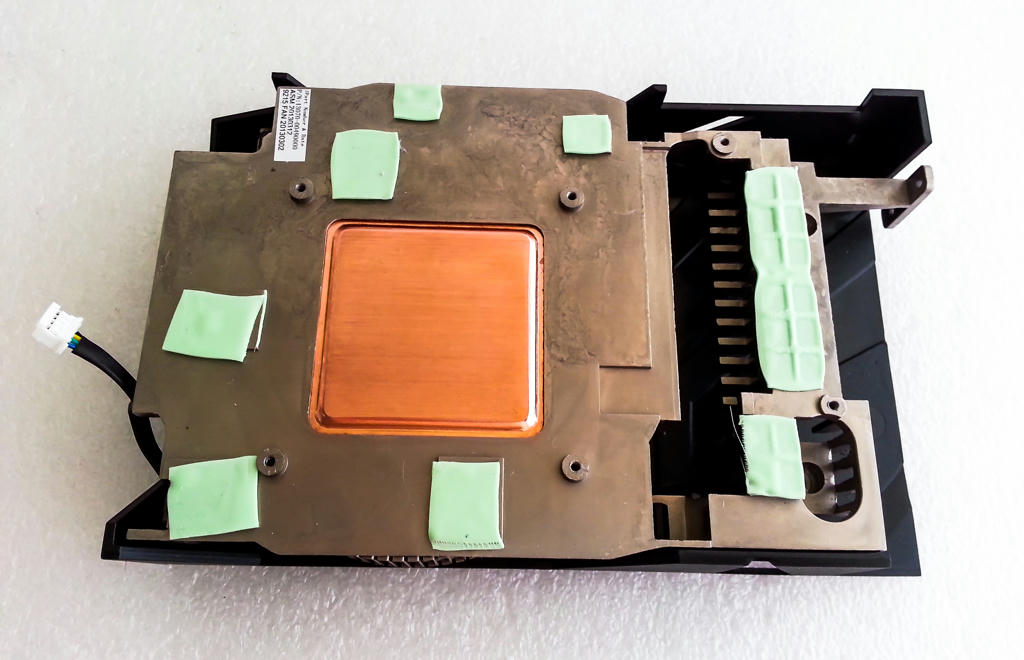

Dismantle: Heatsink from the cover

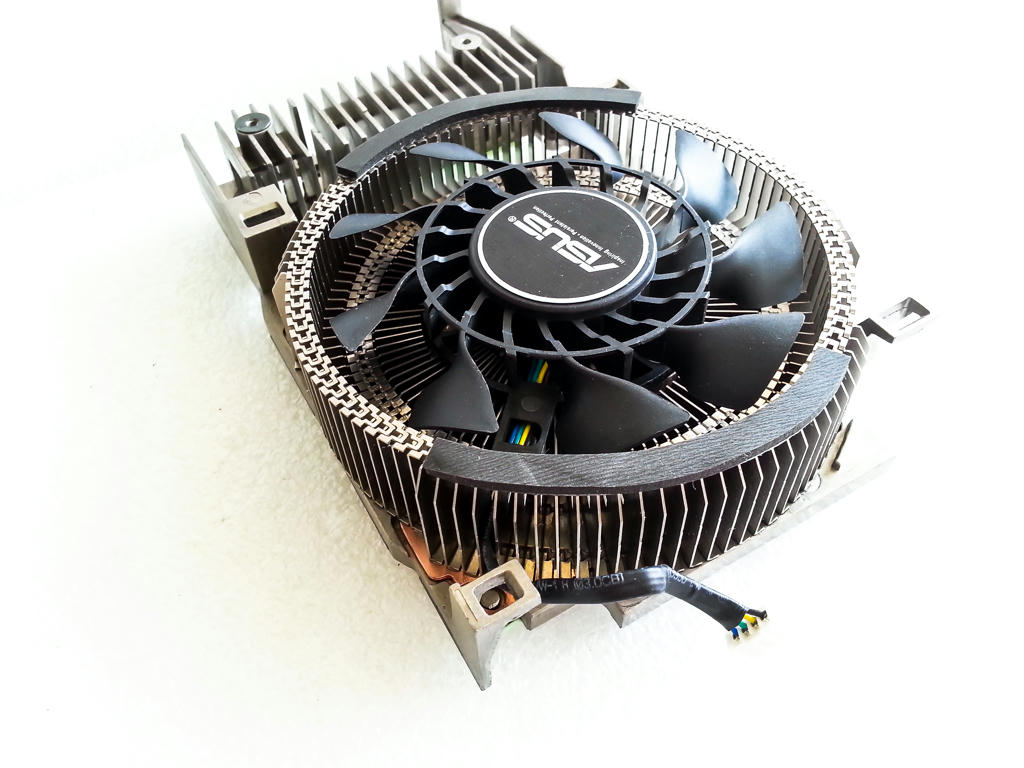

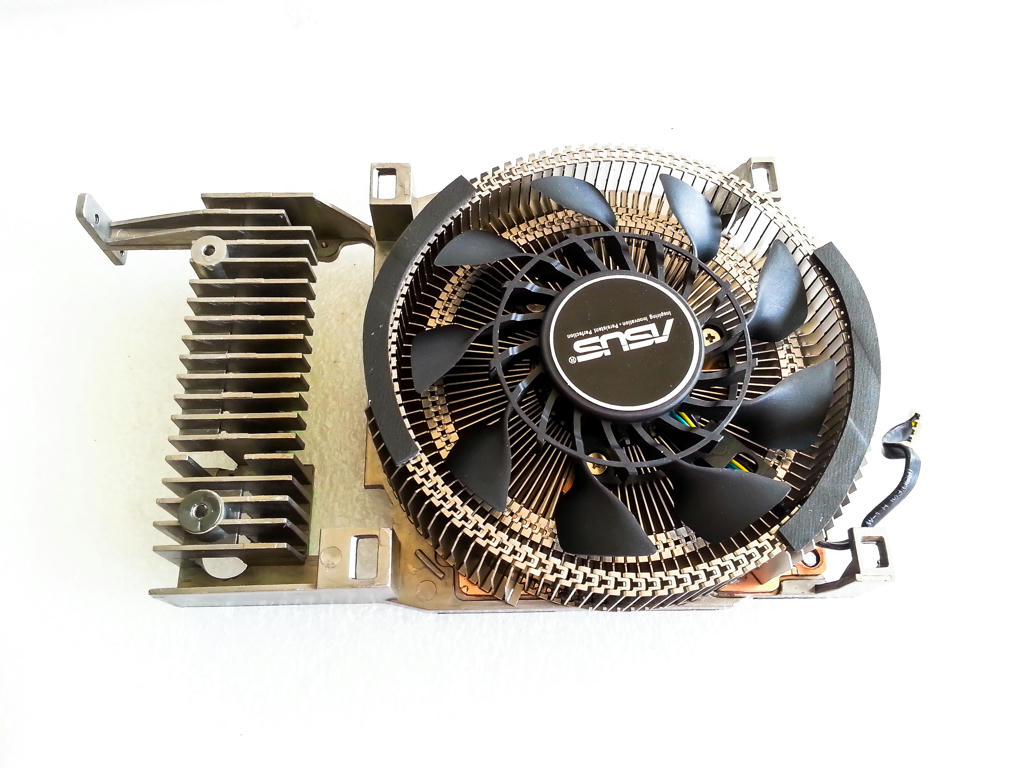

DirectCU heatink with Cooltech fan

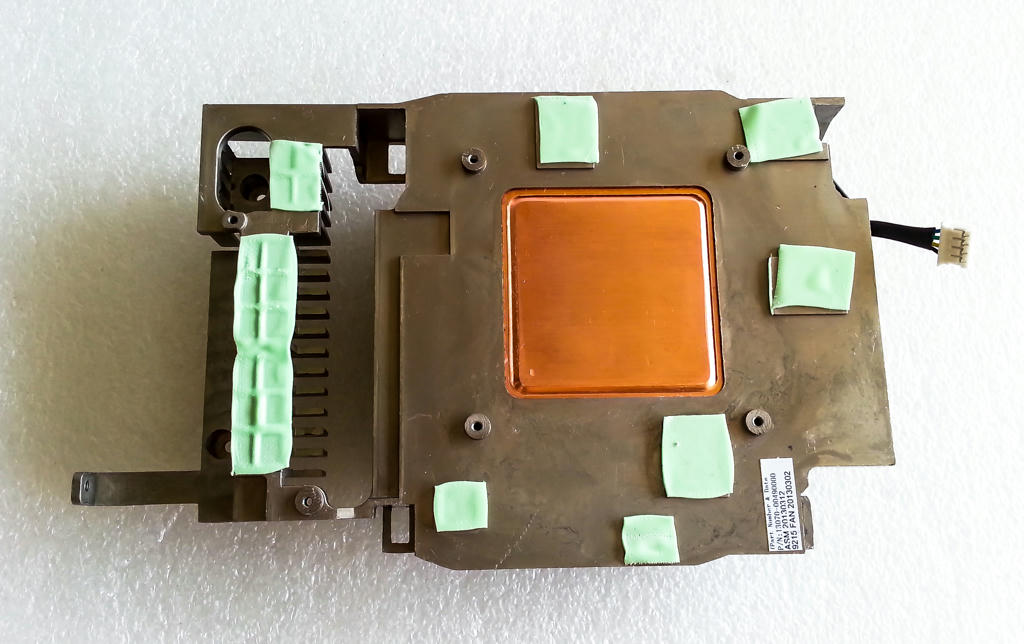

Back view of the heatink

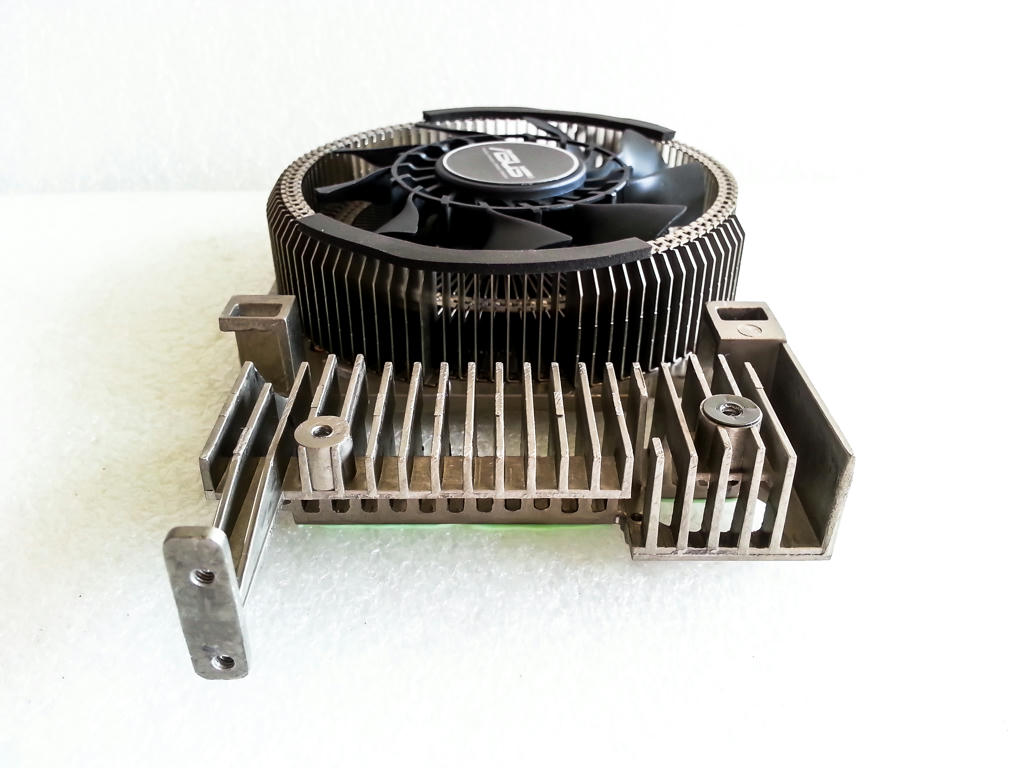

Side view: this is the area where the heat sink cool down the power phase
CoolTech fan

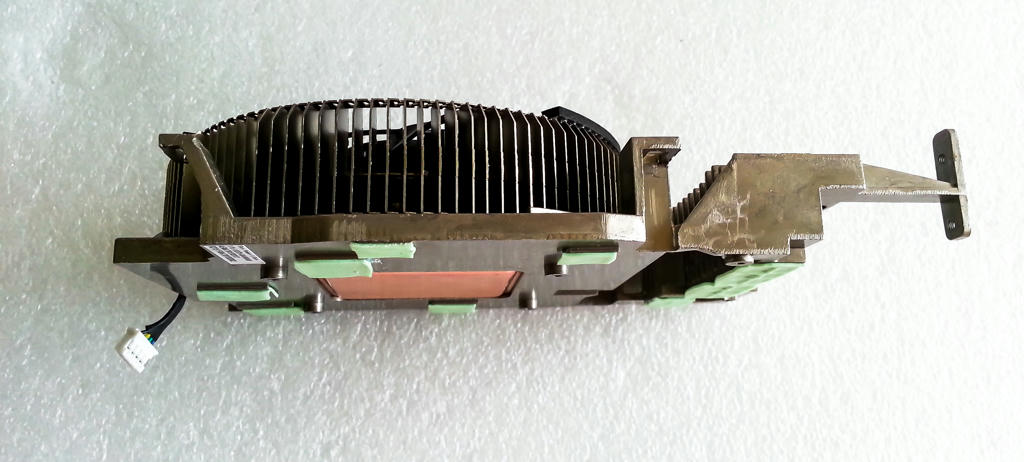

Side view of the heat sink look very huge
Photo of the day :) end of my hardware review
Specifications:
Model: Asus GTX670-DCMOC-2GD5
Graphics Engine: NVIDIA GeForce GTX670
Bus Standard: PCI-Express 3.0
Video Memory: 2GB GDDR5
GPU boost clock: 1006mhz
GPU base clock: 928mhz
CUDA cores: 1344
Memory clock: 6008mhz [1502 mhz GDDR5]
Memory interface: 256 bits
Dimension: 6.7" x 4.8" x 1.6"
System Test:
Intel core i5 3570K
Asus P8Z77-V
G.Skill 16Gb 1600mhz CL9
Asus GTX670 DC Mini
Plextor M5 Pro 128Gb
FSP 850w
----------------------------------------------------
Asus GTX670 Mini packaging box
Top view of the box:
Back view of the box
Side view of the box
Unboxing
Accessory:
Users Manual
Driver/GPU Tweak utilities
1x Power cable converter
The Asus GTX670 DCU Mini card
I/O port:
1x DVI-I
1x DVI-D
1x HDMI 1.4
1x Display Port
Side view of the card
Side view of the card
Top view of the card
This card require 8-pins power

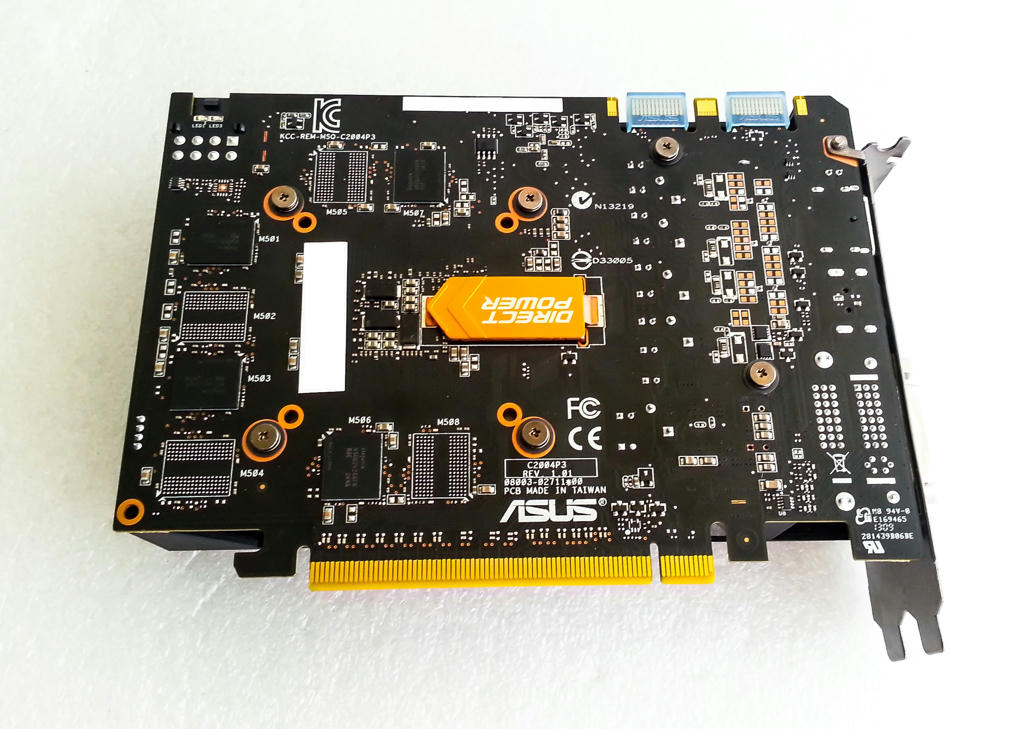

Back video of the card

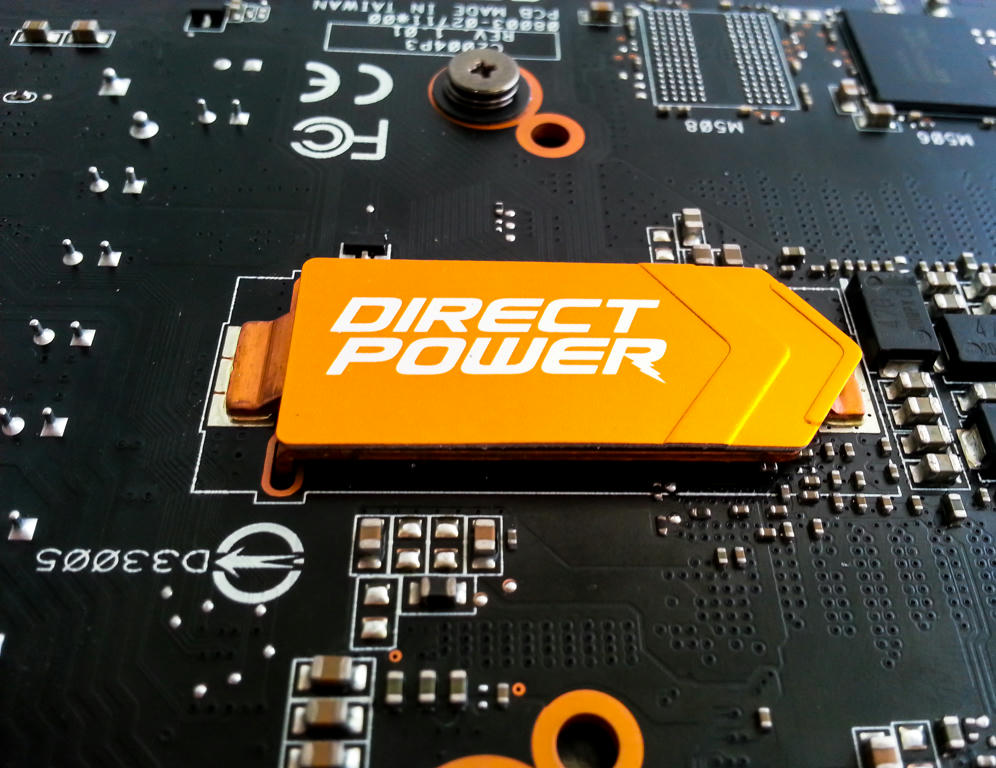

"Direct Power>" This is just a copper heat sink, used to spread heat from inner PCB layer and lower down the temperature of the card.
Direct Power >> pointing at the SAP caps to maximize overclocking headroom
This card allow you to run 3-way SLI card, it mean you can link up with 3 cards
Dismantle: DirectCU cooler and PCB
This card used 4+1 Power phase.
Red: 4x Hynix memory chip on the surface.
Orange: 1 phase for VRAM- video memory
Green/Blue/Purple/Pink Total 4 phase for GPU cores, 1 color is 1 phase.
This video memory used: Hynix H5GQ2H24AFA chips, a total of 8 memory chips is clocked to 6Gbps and given 2GB GDDR5
And back of the PCB have 4x Hynix Memory chips
NVIDIA: GK104-325-A2 GPU
Asus used High Quality Mosfets, Two red 4937N MOSFETs act on the low-side and a single blue 4955N is used as the high-side. These MOSFETs have very low RDS(ON)
Purple: Asus used taiwan made soild caps
Pink Richtek RT8867A PWM 4-power phase controller
This is DirectCU Mini with Custom vapor chamber heat sink

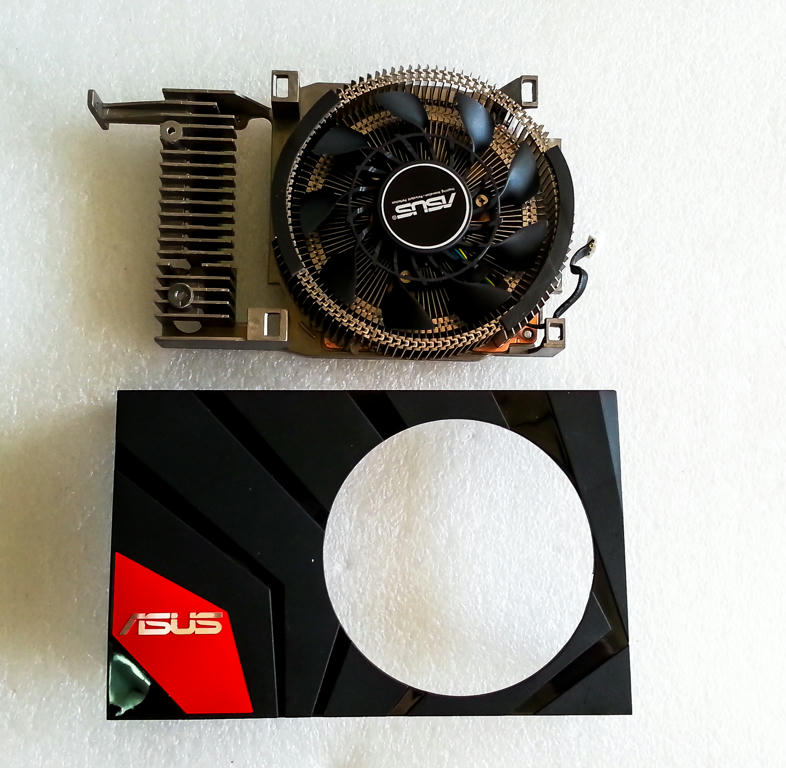

Dismantle: Heatsink from the cover
DirectCU heatink with Cooltech fan
Back view of the heatink
Side view: this is the area where the heat sink cool down the power phase
CoolTech fan
Side view of the heat sink look very huge
Photo of the day :) end of my hardware review
